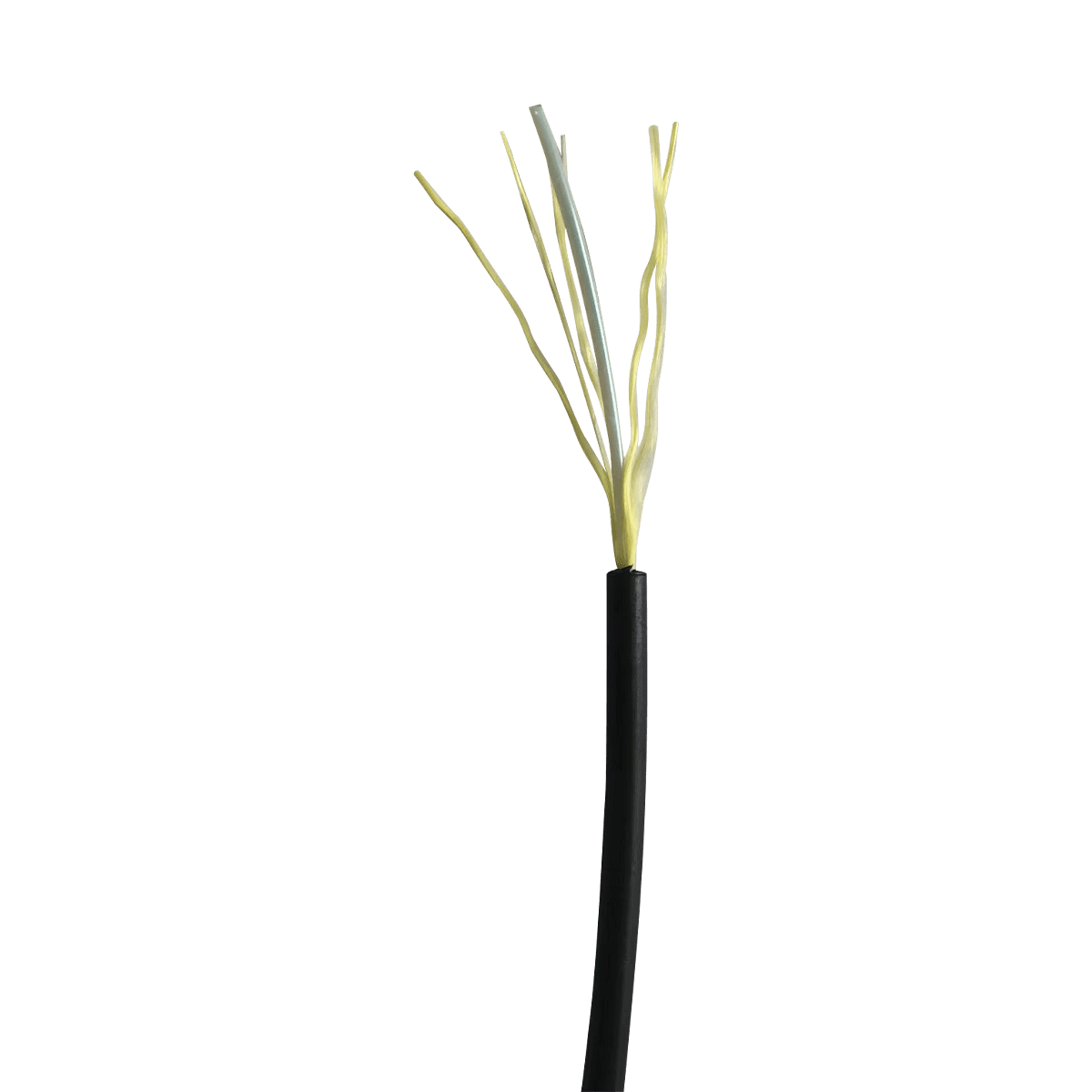

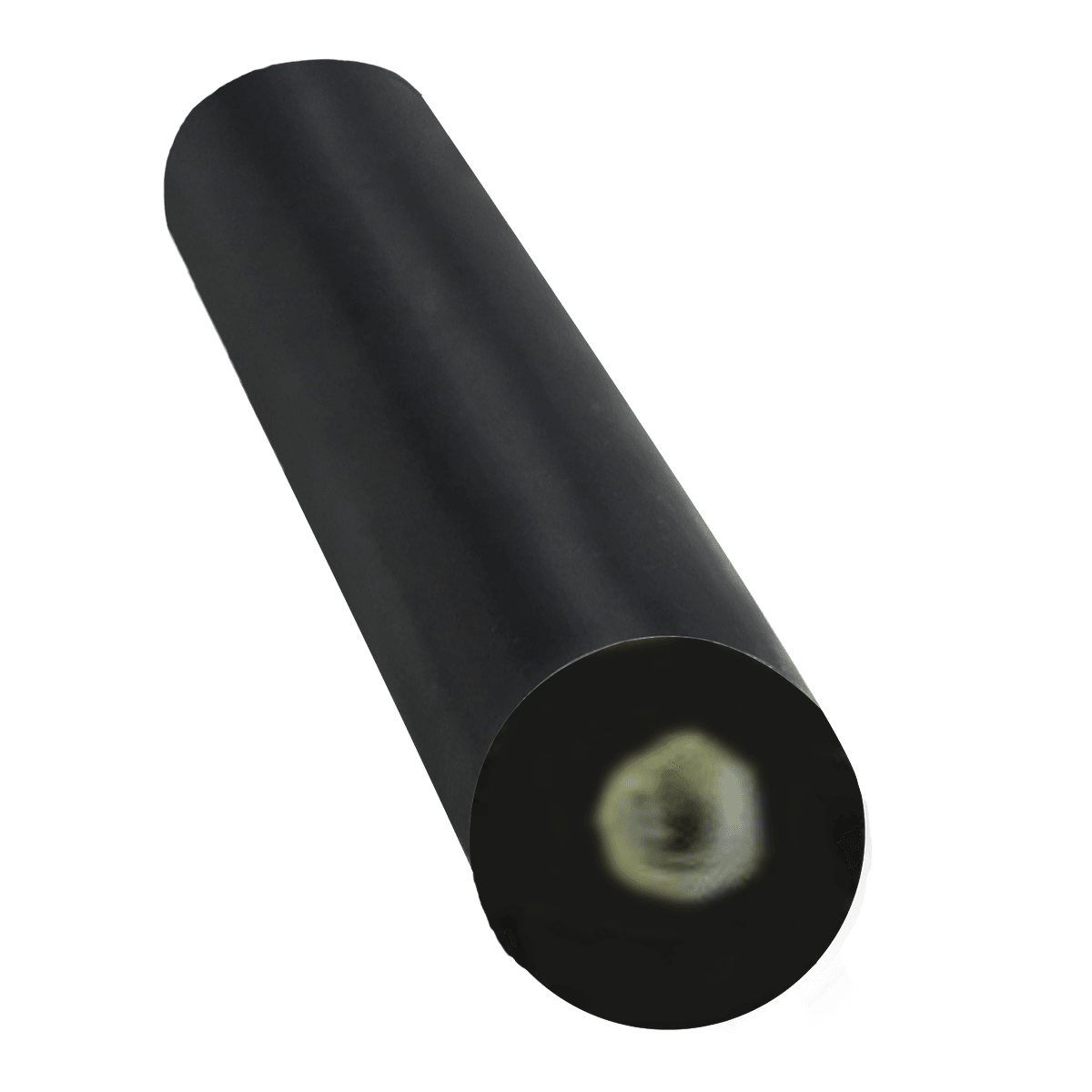

Unitube Non-metallic Micro Cable(JET)

Characteristic:

◆Non-mental design can prevent the cable from radio interference and magnetic wave interference;

◆Specially designed compact structure is good at preventing loose tubes from shrinking;

◆Aramid yarn ensures good performance of tensile strength;

◆Loose tube filling compound ensure good moisture resistance performance;

◆Good flexibility:

◆High dense fiber packed, small diameter and light weight, it's the better option for blowing installation process;

Application: Adopted to backbone network, access network and fiber to the home.

Description:

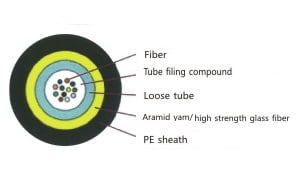

◆The fibers, 250um, either of single. mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE sheath.

Optical Characteristics
Type		G.652	G.655	50/125μm	62.5/125μm
Attenuation(±20℃)	850nm			≤3.0dB/km	≤0.30dB/km
	1300nm			≤1.0dB/km	≤1.0dB/km
	1310nm	≤0.36dB/km	≤0.40dB/km
	1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth(Class A)	850nm			≥500MHz·km	≥200MHz·km
Bandwidth(Class A)	1300nm			≥1000MHz·km	≥600MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wave Length		≤1260nm	≤1480nm

Technical Parameters
Model	Fiber Count	Cable ODmm	Cable Weight kg/km	Tensile Strength Long Short Term	Crush Besistanre Long Short Term N/100mm	Bending Radius Static/Dynamic mm
1006	2~12	4.2±0.3	12	60/150	300/1000	10D/20D
1007	14~24	4.6±0.3	15	60/150	1000/3000	10D/20D
1008	26~36	5.1±0.3	18	60/150	1000/3000	10D/20D
1009	38~48	5.6±0.3	22	60/150	1000/3000	10D/20D
