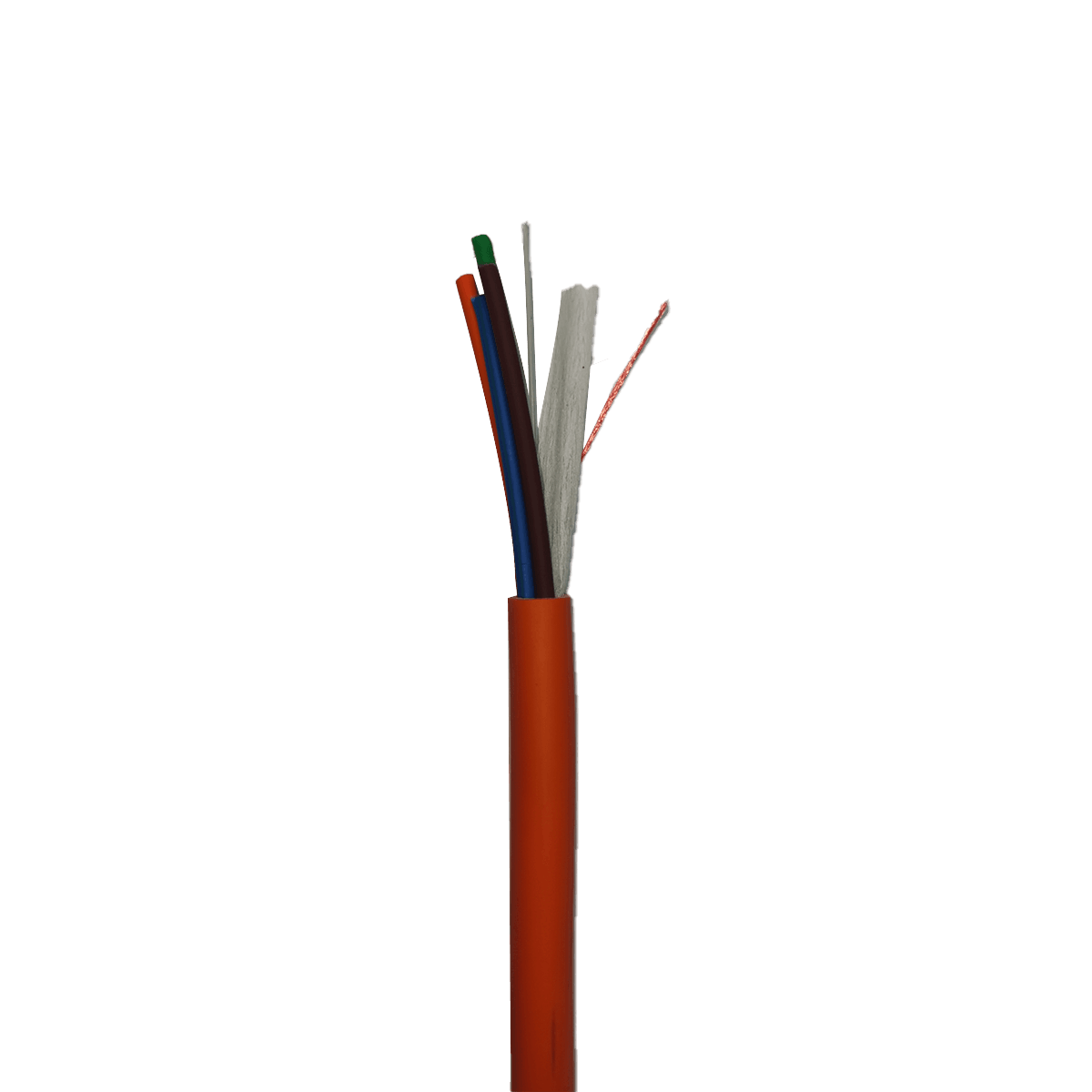

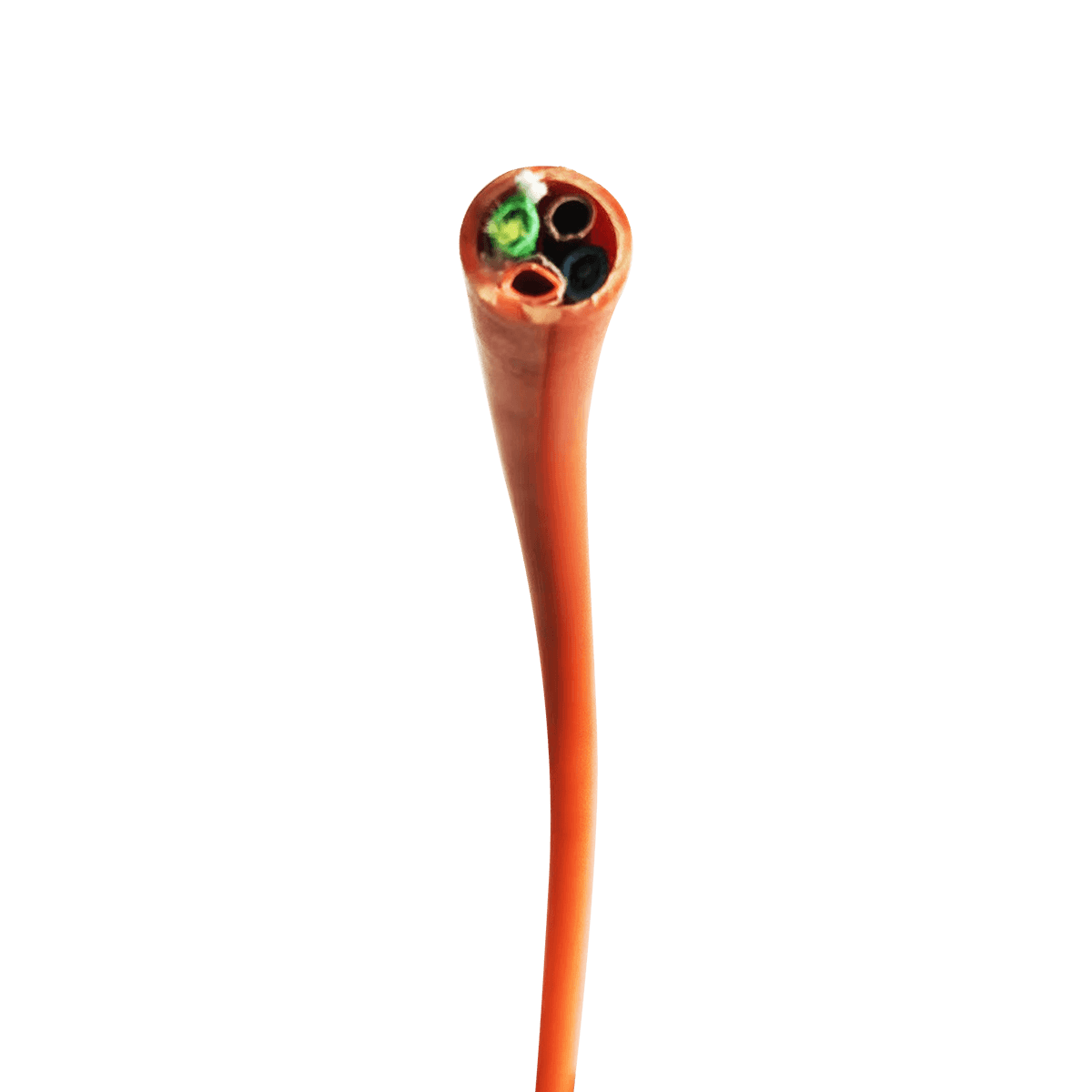

Break-out Cable II

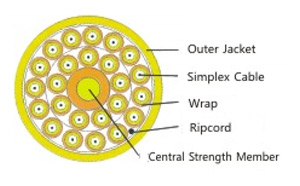

Geometrical Characteristics

Model

734

834

934

135

235

335

435

535

635

735

835

935

136

236

No.of fiber

2.4

6

8

12

14

16

18

20

24

30

32

34

36

48

Cable Dimension(mm)

7.0

8.1

9.8

12.3

10.9

12.2

12.2

12.5

14.0

15.7

16.0

16.0

16.0

19

Cable Weight(kg/km)

45

62

84

138

101

123

123

137

170

222

215

215

215

350

Simplex Cable Diameter(mm)

1.95±0.05

TBF Diameter(μm)

900±50

Mechanical Characteristics

Tensile Strength (N)

Long Term

200

Short Term

660

Crush Resistance (N/100mm)

Long Term

300

Short Term

1000

Dynamic

20xD(D:Cable Diameter)

Static

10xD(D:Cable Diameter)

Fiber

Fiber Type(core/cladding dimension)

9/125,50/125,62.5/125

Transmission Characteristics

SMF

50/125

62.5/126

1310/1550(nm)

850/1300(nm)

850/1300(nm)

Attenuation(dh/km)

≤0.4/0.3

≤3.5/1.5

≤3.5/1.5

Minimum Bandwidth(MHz·km)

≥400/400

≥160/500

Environmental Characteristics

Storage Operating Temperature

-20℃~+60℃
