All Dielectric Self-supporting Aerial Cable(ADSS)

Description:

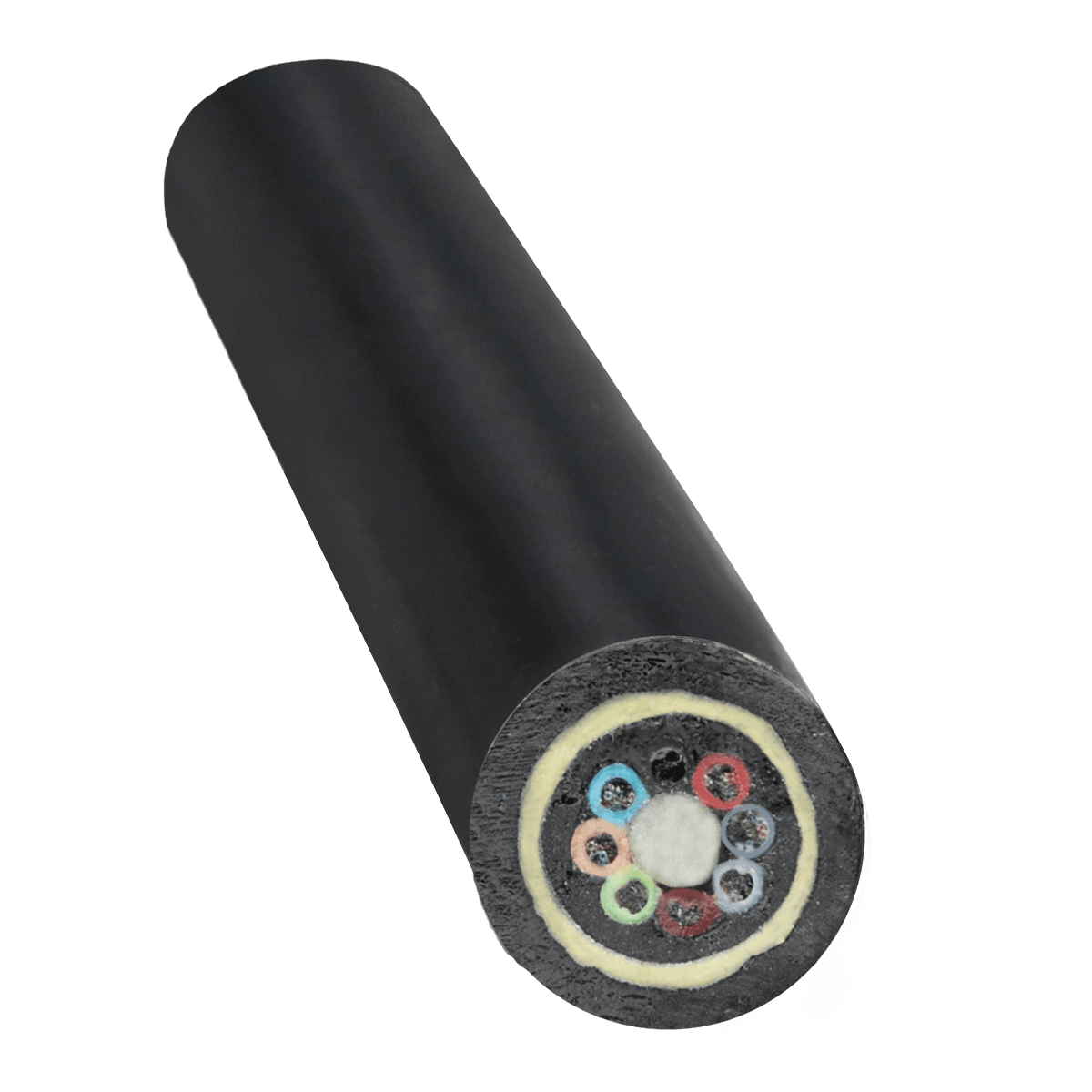

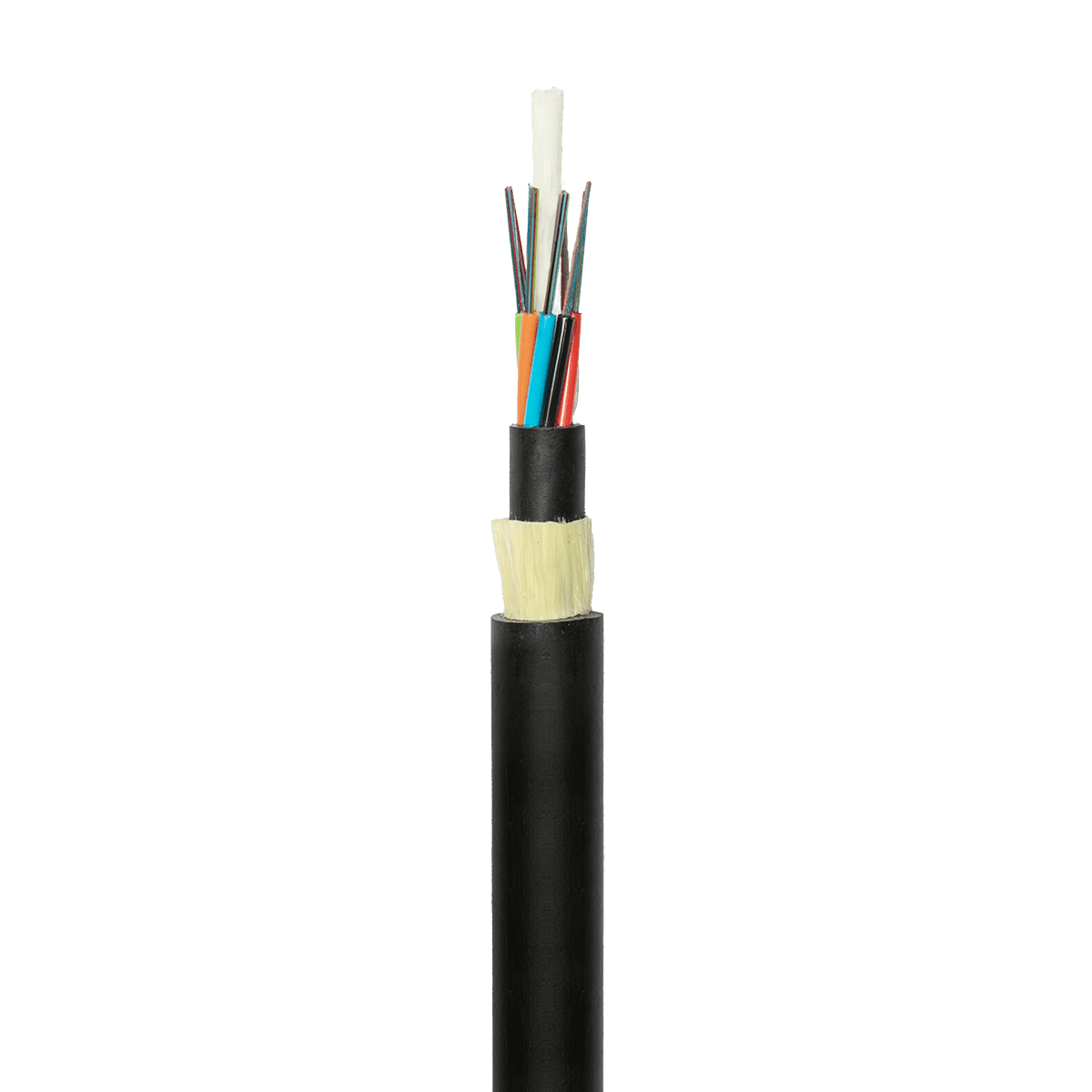

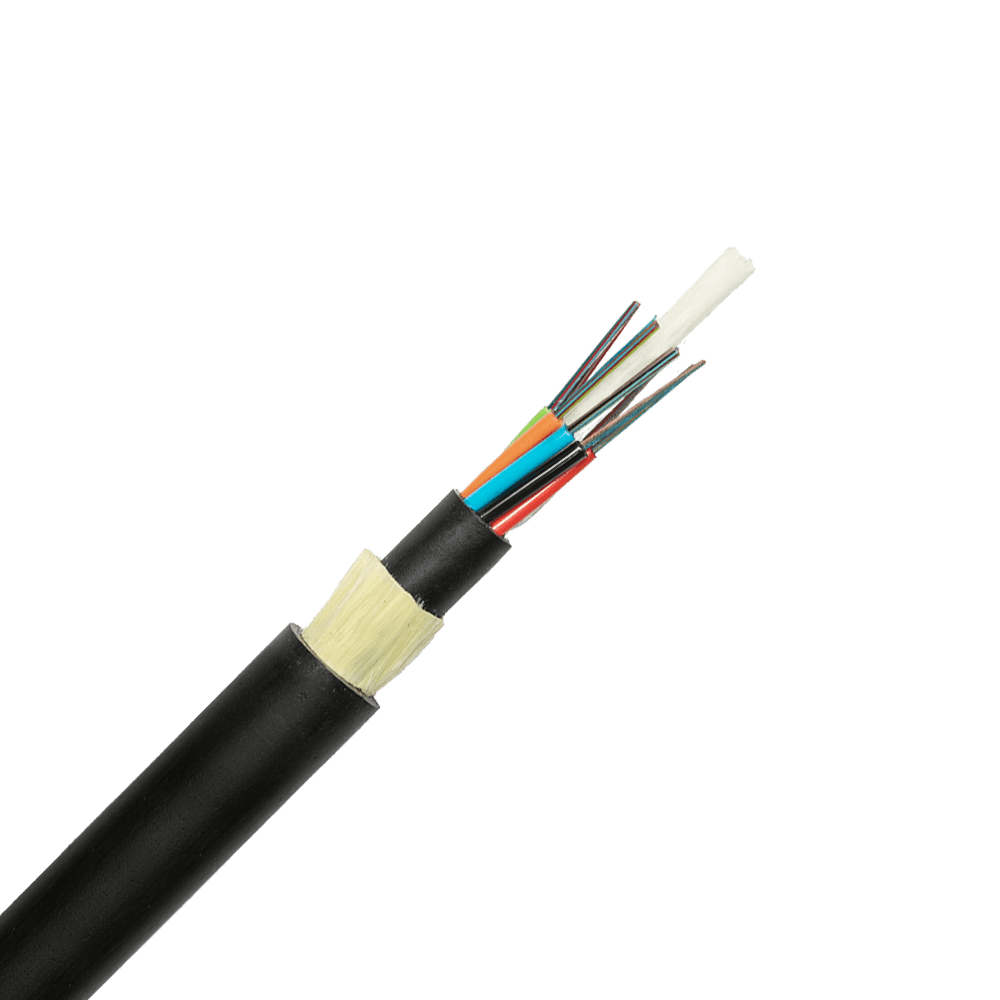

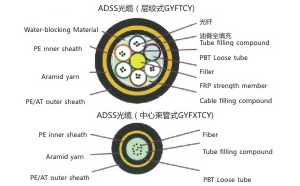

◆ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound.it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tranking)outer sheath.

Characteristic:

◆Can be installed without shutting off the power

◆Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach25kv

◆Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back props

◆Large span lengths and the largest span is over 1000m

◆Good performance of tensile strength and temperature

◆The design life span is 30 years

Standards:

ADSS cable complies with Standard IEE P 1222 as well as IEC 60794-1

Application:

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110KV, PE outer sheath is applied. FOR power lines equal to or over 110KV, ATouter sheath is applied. The dedicated design of aramid quantity and stranding process can satisfy the demand on various spans.

Optical Characteristics
Type		G.652	G.655	50/125μm	62.5/125μm
Attenuation(±20℃)	@850nm			≤0.30dB/km	≤0.30dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth(Class A)	@850nm			≥500MHz·km	≥200MHz·km
Bandwidth(Class A)	@1300nm			≥1000MHz·km	≥600MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wave Length		≤1260nm	≤1400nm

Technical Parameters
Model	Ref. weight kg/km		Ref. daily max. working tension KN	May allowable working tension KN	Break strength KN	Strength member CSAmm²	Modulus of elasticity KN/mm²	Heat expansion coefficient x106/K	Suitable span (NESC Standard,m)
	PE sheath	AT sheath							Suitable span (NESC Standard,m)
	PE sheath	AT sheath							A	B	C	D
1167	125	136	1.5	4	10	4.6	7.6	1.8	160	100	140	100
1168	132	142	2.25	6	15	7.6	8.3	1.5	230	150	200	150
1169	137	148	3.0	8	20	10.35	9.45	1.3	300	200	290	200
1170	145	156	3.6	10	24	13.8	10.8	1.2	370	250	350	250
1170	147	159	4.5	12	30	14.3	11.8	1.0	420	280	400	280
1172	164	177	5.4	15	36	18.4	13.6	0.9	480	320	460	320
1173	171	185	6.75	18	45	22.0	16.4	0.6	570	380	550	380
1174	179	193	7.95	22	53	26.4	18.0	0.3	670	460	650	460
1175	190	204	9.0	26	60	32.2	19.1	0.1	750	530	780	510
1176	194	208	10.5	28	70	33.0	19.6	0.1	800	560	800	560
1177	211	226	12.75	34	85	40.0	20.1	0.1	800	650	880	650
1178	226	242	15.45	41	103	48.0	24.0	-0.4	1000	750	1000	760
1179	236	253	16.2	45	108	51.0	25.1	-0.5	1100	800	1100	830
1180	249	266	18.0	50	120	55.8	26.1	-0.8	1180	880	1180	900
