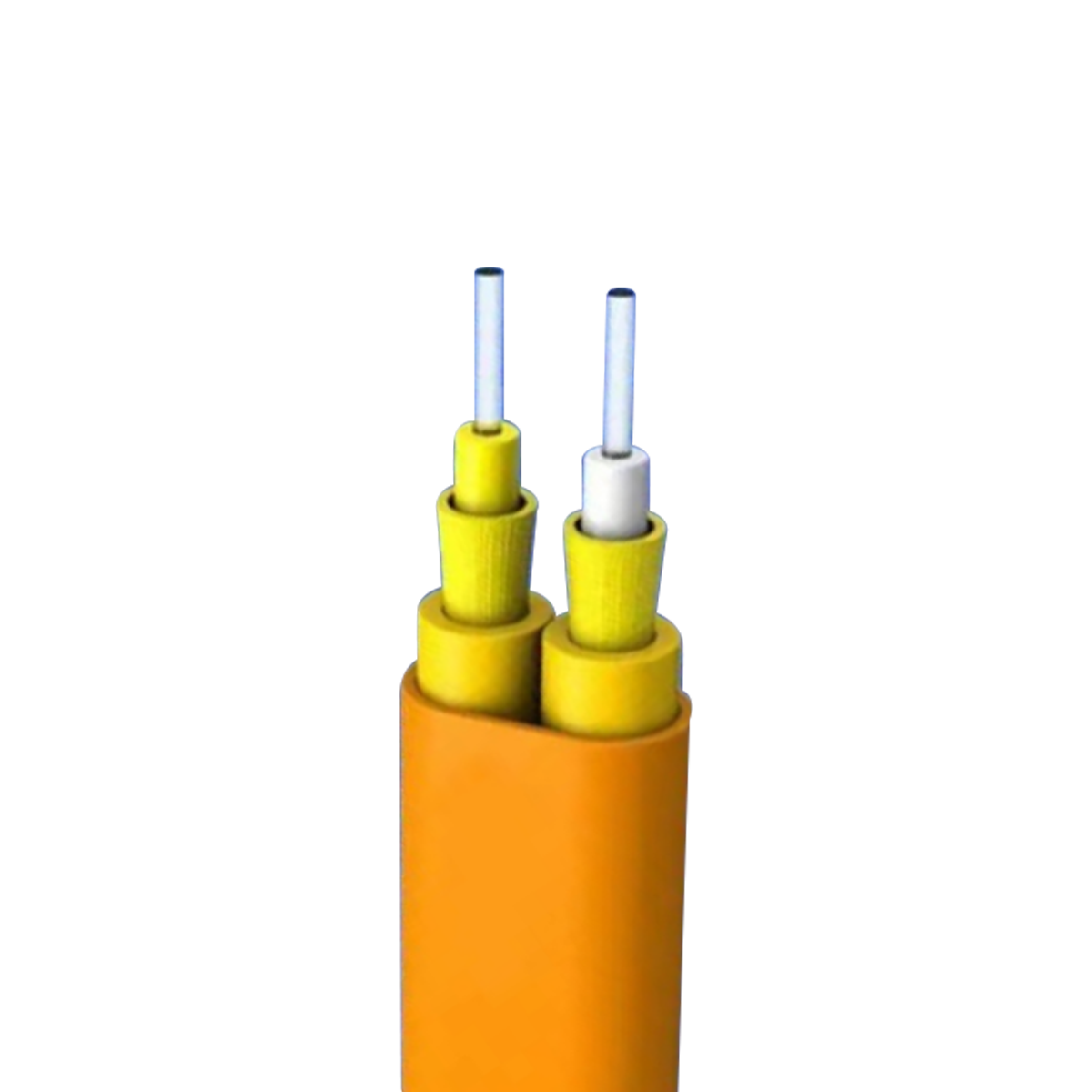

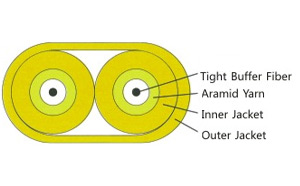

Flat Twin Fiber Cable

Geometrical Characteristics

Model

234

334

434

534

Cable Type

?3.0

?2.4

?2.0

?1.8

Cable Dimension(mm)

4.00±0.1/6.6±0.2

3.6±0.1/6.0±0.2

3.1±0.1/5.0±0.2

2.8±0.1/4.6±0.2

Cable Weight(kg/km)

17

12

9

8

TBF Diameter(μm)

900±50

600±50

Mechanical Characteristics

Tensile Strength (N)

Long Term

100

Short Term

200

Crush Resistance (N/100mm)

Long Term

100

Short Term

500

Bending Radius (CM)

Dynamic

20xD(D:Cable Diameter)

Static

10xD(D:Cable Diameter)

Fiber

Fiber Type(core/cladding dimension)

9/125, 50/125, 62.5/125

Transmission Characteristics

SMF

50/125

62.5/125

1310/1550(nm)

850/1300(nm)

850/1300(nm)

Attenuation(db/km)

≤0.4/0.3

≤3.5/1.5

≤3.5/1.5

Minimum Bandwidth(MHz·km)

≥400/400

≥160/500

Environmental Characteristics

Storage Operating Temperature

-20℃~+60℃
