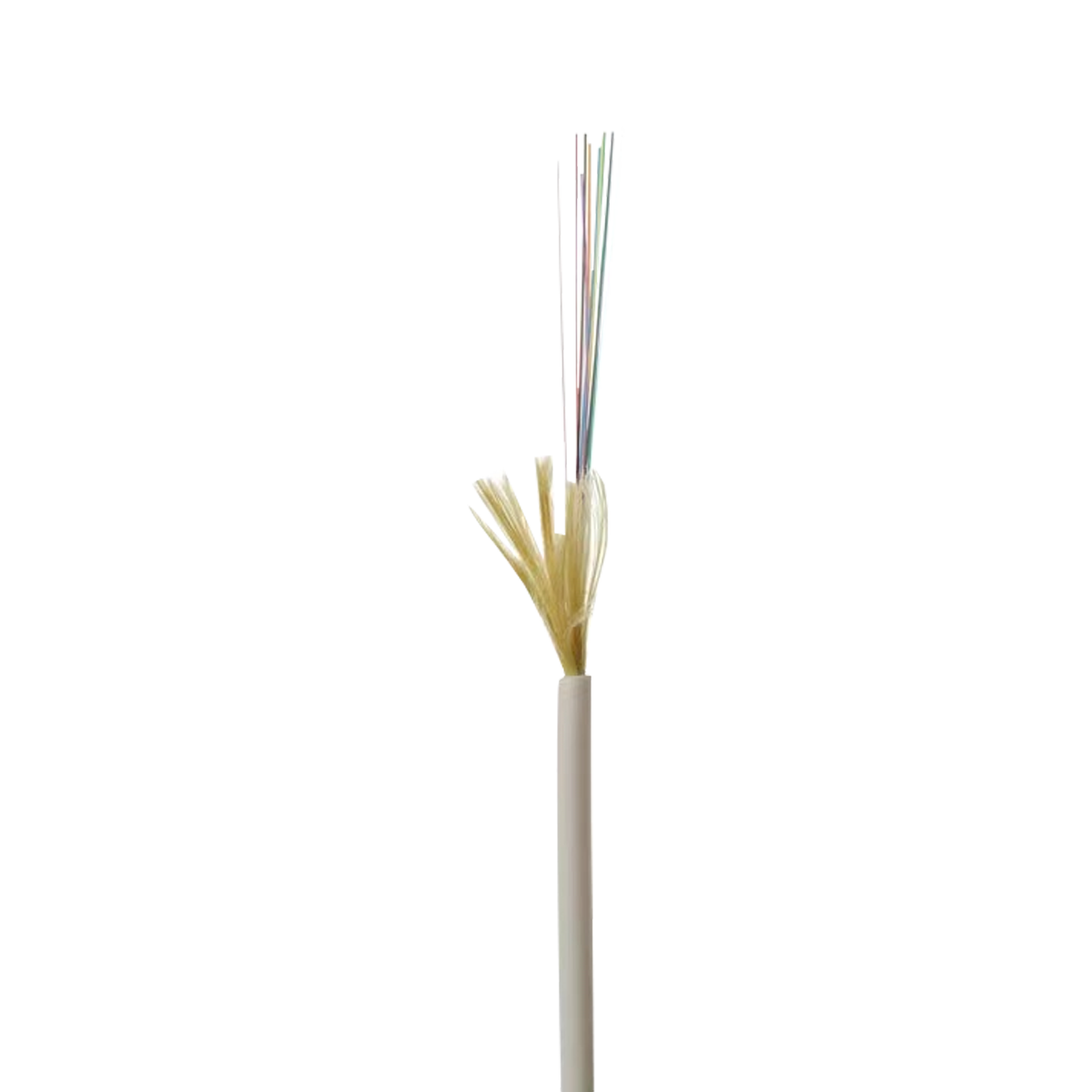

Access Cable

Geometrical Characteristics

Model

441

541

641

 741

No.of fiber

12

24

48

72

Cable Dimension(mm)

7.1

11.5

11.5

12.7

Cable Weight(kg/km)

31

105

105

149

Coloring FIber Diameter(μm)

250±15

Mechanical Characteristics

Tensile Strength (N)

Long Term

200

Short Term

600

Crush Resistance (N/100mm)

Long Term

300

Short Term

1000

Bending Radius(CM)

Dynamic

20xD(D:TBF Diameter)

Static

10xD(D:TBF Diameter)

Fiber

Fiber Type(core/cladding dimension)

9/125,50/125,62.5/125

Transmission Characteristics

SMF

50/125

62.5/125

1310/1550(nm)

850/1300(nm)

850/1300(nm)

Attenuation(db/km)

≤0.4/0.3

≤3.5/1.5

≤3.5/1.5

Minimum Bandwidth (MHz·km)

≥400/400

≥160/500

Environmental Characteristics

Storage Operating Temperature

-20℃~+60℃
