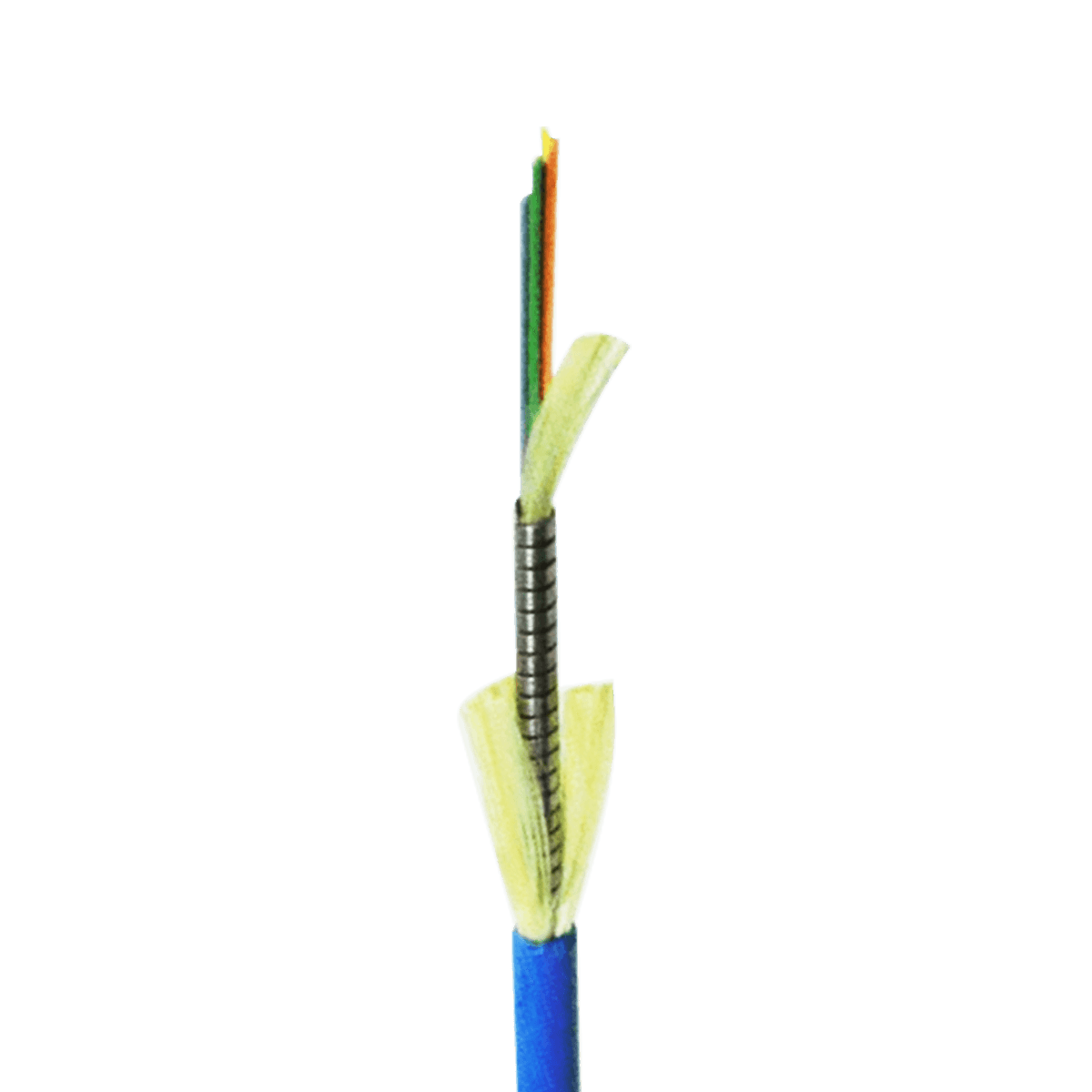

Distribution Armored Cable

Characteristic:

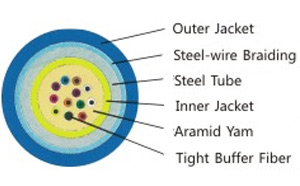

◆600μm tight buffer fiber, steel tube protect, reinforcing steel-wire braiding ( aramid yarn), flame-retardant jacket.

◆High indentation strength, high tensile strength, gopher protected, small diameter, flexibility and easy bend

◆Excellent stripping performance of tight buffer fiber

◆Suited to SM fiber and MM fiber(9μm, 50μm and 62.5μm)

◆It is ideal choice of fiber optic temperature transmission project

Geometrical Characteristics
Model	241	341
No.of fiber	4.6	8.12
Cable Dimension(mm)	6.5±0.5	7.5±0.5
Cable Weight(kg/km)	73	93
TBF Diameter(μm)	600±50

Mechanical Characteristics
Tensile Strength (N)	Long Term	100
Tensile Strength (N)	Short Term	200
Crush Resistance (N/100mm)	Long Term	300
Crush Resistance (N/100mm)	Short Term	1000
Bending Radius (CM)	Dynamic	20xD(D:TBF Diameter)
Bending Radius (CM)	Static	10xD(D:TBF Diameter)

Fiber
Fiber Type(core/cladding dimension)	9/125,50/125,62.5/125

Transmission Characteristics
	SMF	50/125	62.5/125
	1310/1550(nm)	850/1300(nm)	850/1300(nm)
Attenuation(db/km)	≤0.4/0.3	≤3.5/1.5	≤3.5/1.5
Minimum Bandwidth(MHz ·km)		≥400/400	≥160/500
