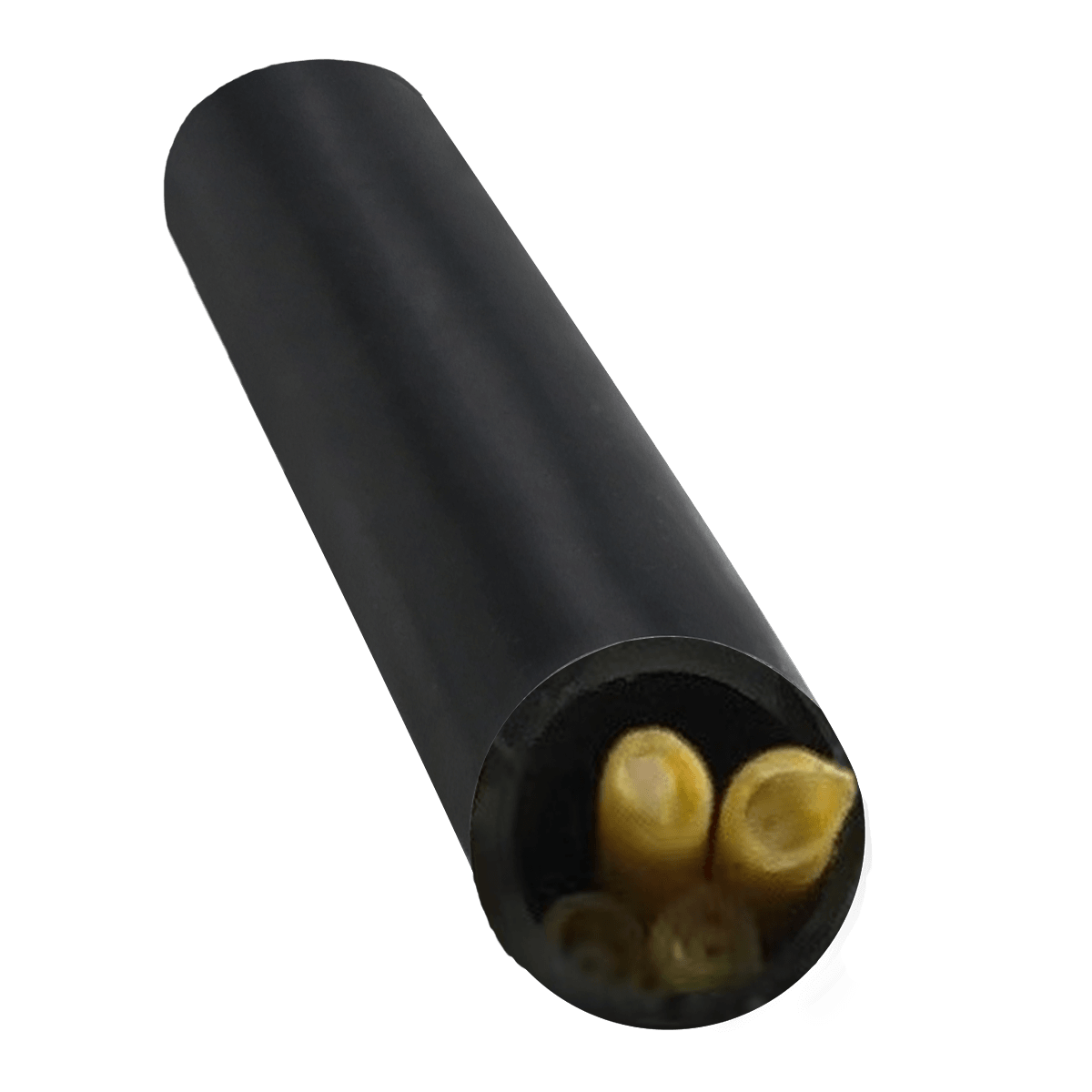

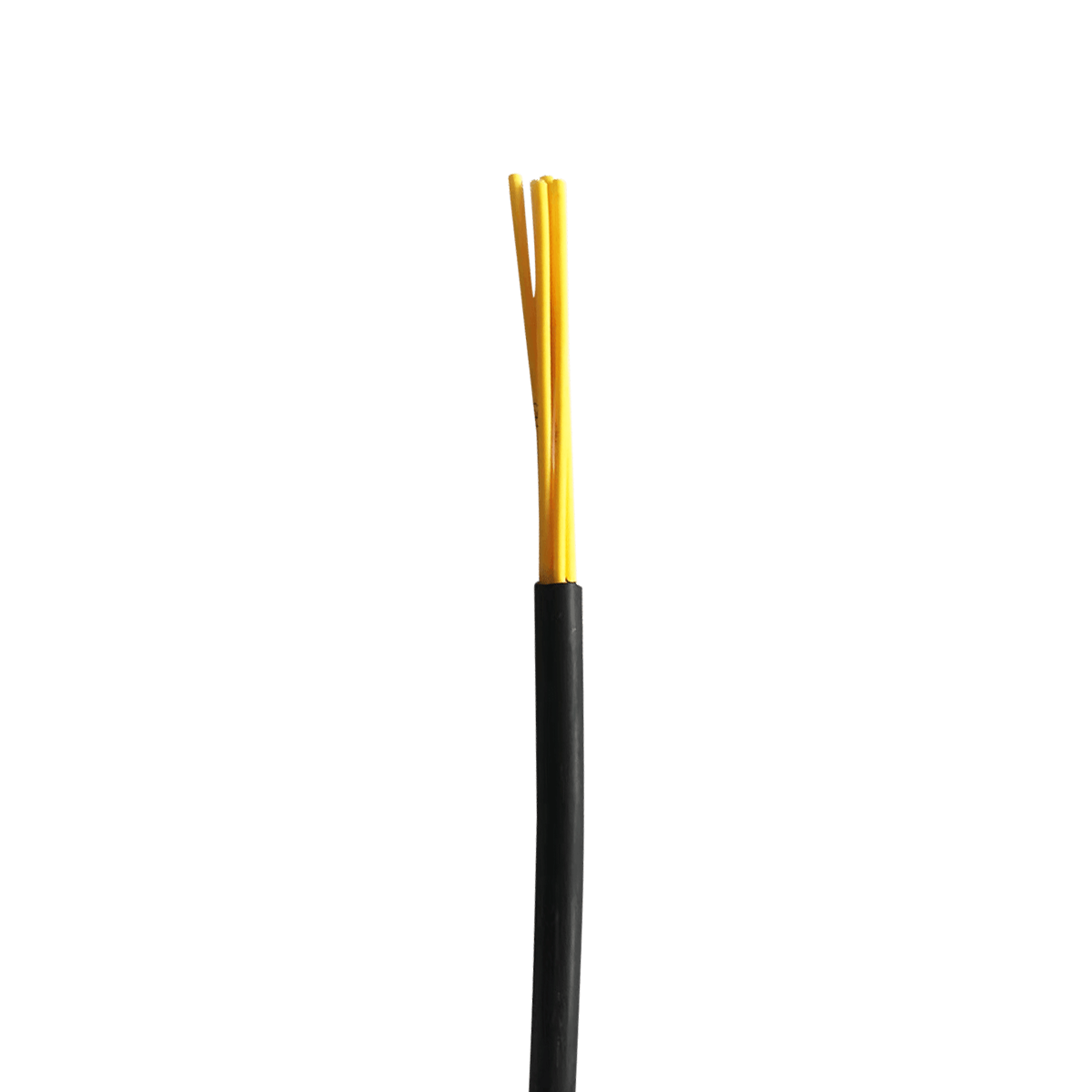

Break-out Cable I

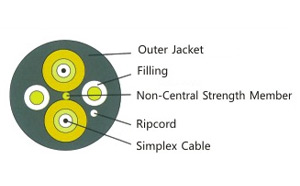

Geometrical Characteristics

Model

634

No.of fiber

2

Cable Dimension(mm)

7.0

Cable Weight(kg/km)

40

TBF Diameter(μm)

900±5

Mechanical Characteristics

Tensile Strength(N)

Long Term

200

Short Term

660

Crush Resistance (N/100mm)

Long Term

300

Short Term

1000

Bending Radius (CM)

Dynamic

20xD(D:Cable Diameter)

Static

10xD(D:Cable Diameter)

Fiber

Fiber Type(core/cladding dimension)

9/125,50/125,62.5/125

Transmission Characteristics

SMF

50/125

62.5/125

1310/1550(nm)

850/1300(nm)

850/1300(nm)

Attenuation(dh/km)

≤0.4/0.3

≤3.5/1.5

≤3.5/1.5

 Minimum  Bandwidth(MHz·km)

≥2400/400

≥160/500

Environmental Characteristics

Storage Operating Temperature

-20℃~+60℃
