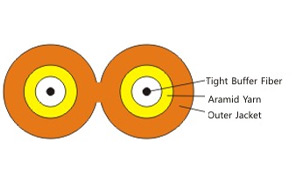

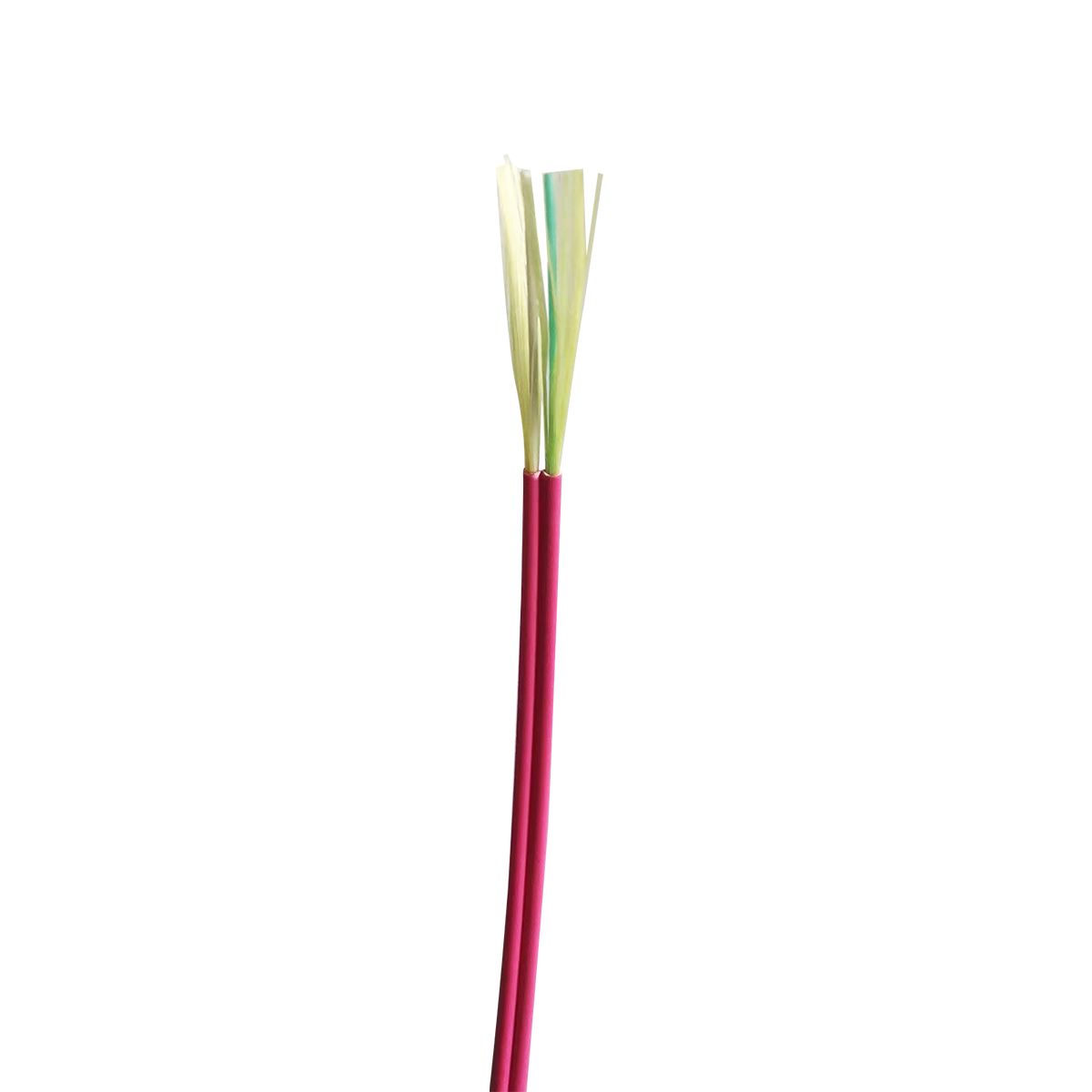

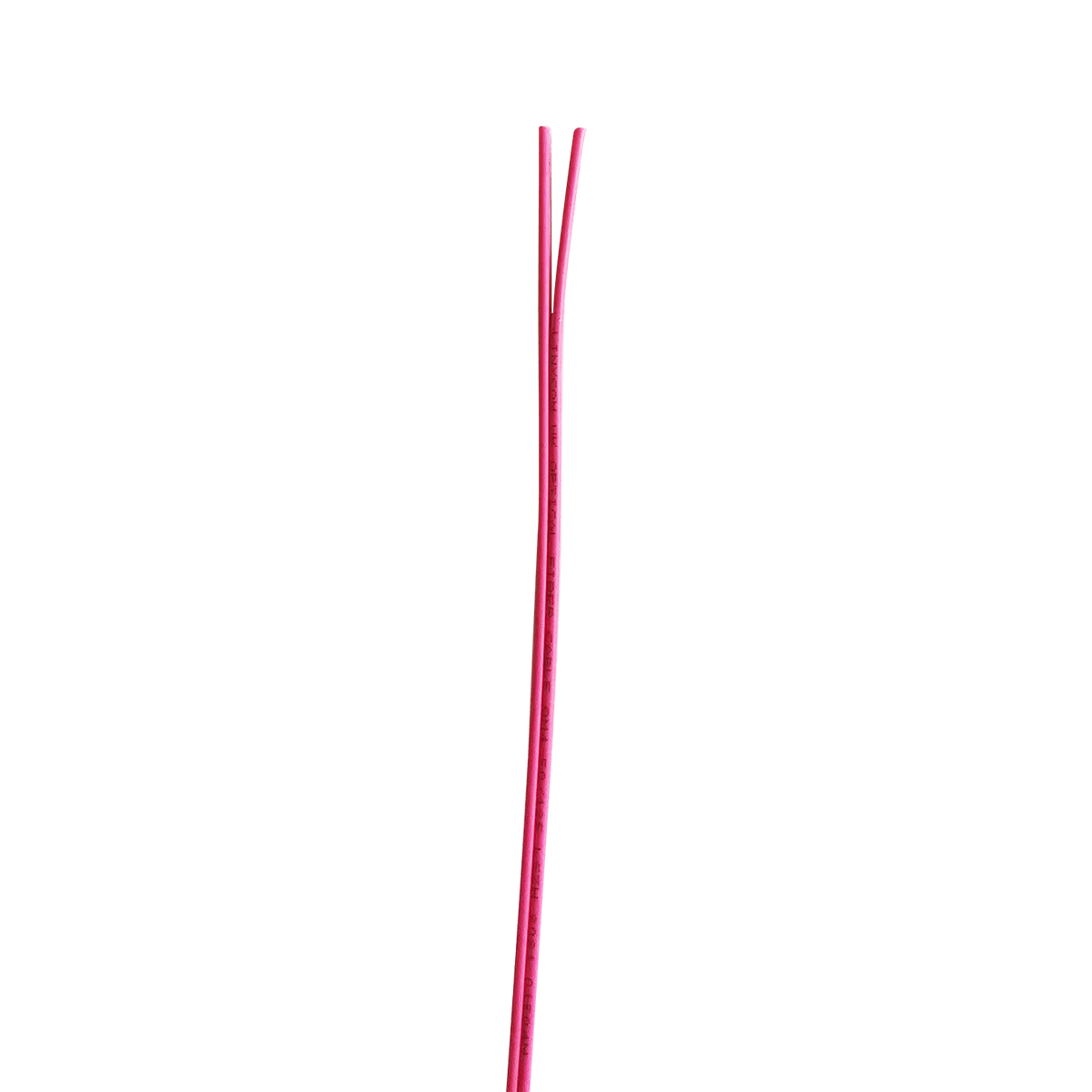

Zipcord Cable

Geometrical Characteristic

Model

832

932

133

233

Cable Type

?3.0

?2.0

?1.8

?1.6

Cable Dimension(mm)

2.85±0.1/5.8±0.2

1.95±0.0S/3.9±0.1

1.75±0.05/3.6±0.1

1.55±0.05/3.2±0.1

Cable Weight(kg/km)

14

8

7.8

7.6

TBF Diameter(Mm)

900±150

600±150

机械性能Mechanical Characteristics

Tensile Strength (N)

Long Term

100

Short Term

200

Crush Resistance (N/100mm)

Long Term

100

Short Term

500

Bending Radius  (CM)

Dynamic

20xD(D:TBF Diameter)

Static

10xD(D:TBF Diameter)

Fiber

Fiber Type(core/cladding dimension)

9/125,50/125,62.5/125

Transmission Characteristics

SMF

50/125

62.5/125

1310/1550(nm)

850/1300(nm)

850/1300(nm)

Attenuation (dh/km)

≤0.4/0.3

≤3.5/1.5

≤3.5/1.5

Minimum  Bandwidth  (MHz·km)

≥400/400

≥160/500

Environmental Characteristics

Storage Operating Temperature

-20℃~+60℃
