Figure 8 Cable(GYXTC8S)

Description:

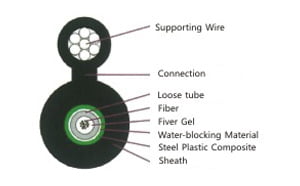

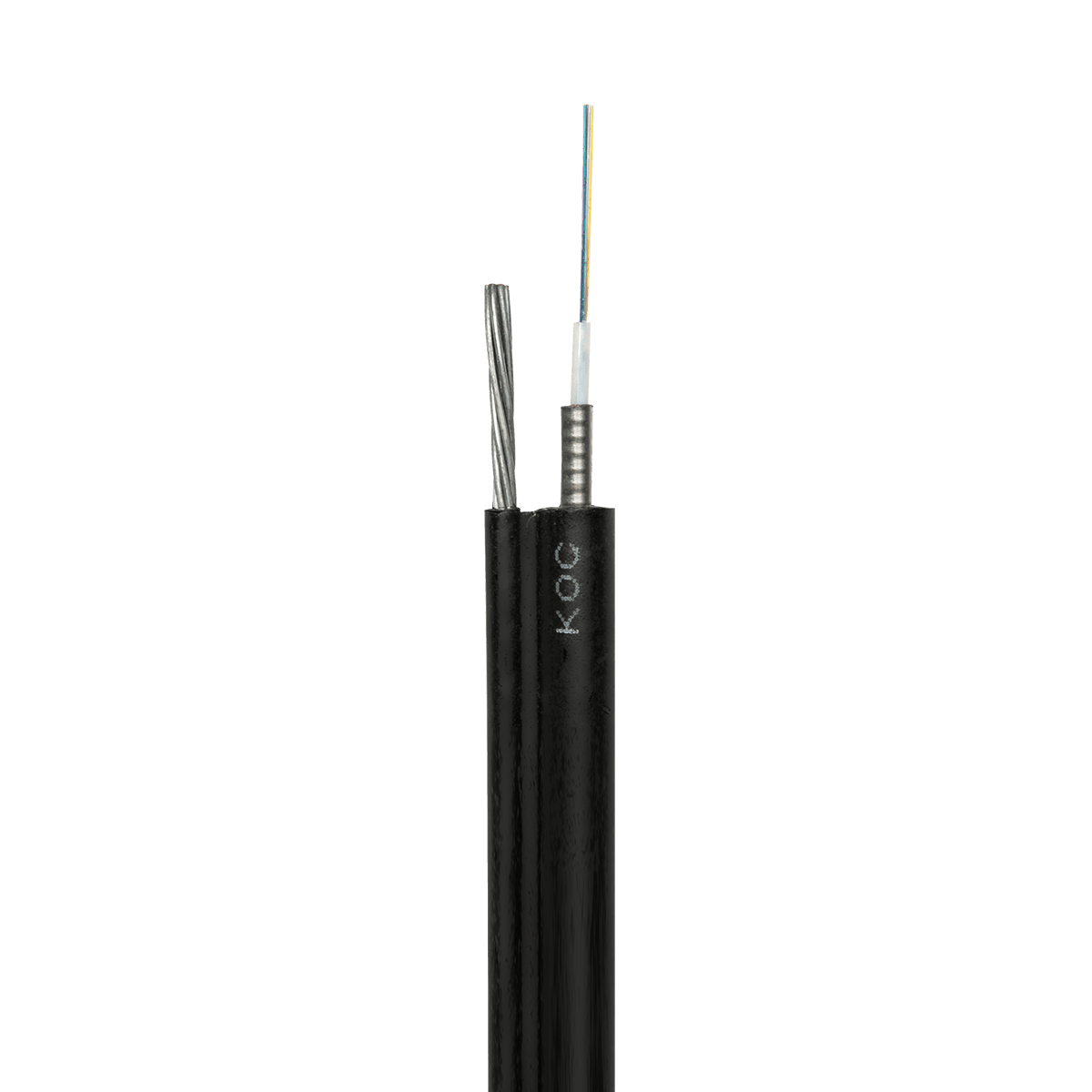

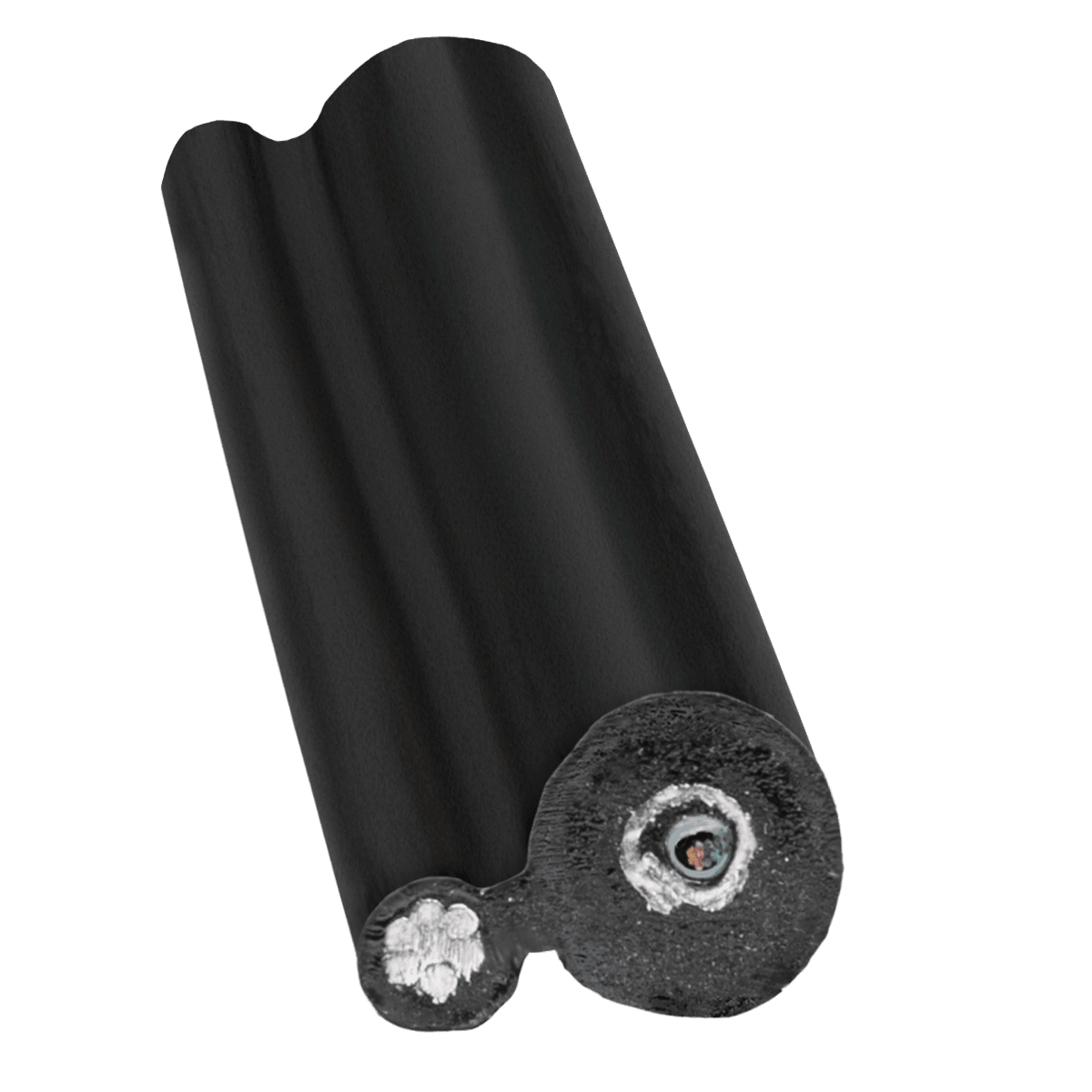

◆The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.

Characteristic:

◆High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost;

◆Good mechanical and temperature performance;

◆High strength loose tube that is hydrolysis resistant;

◆Special tube filling compound ensure a critical protection of fiber;

◆PSP enhancing moisture-proof;

◆Small diameter, light weight and friendly installation;

◆Long delivery length and low price;

Optical Characteristics
Type		G.652	G.657	50/125μm	625/125μm
Attenuation(±20℃)	@850nm			≤0.30dB/km	≤0.30dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth(Class A)	@850nm			≥500MHz·km	≥200MHz·km
Bandwidth(Class A)	@1300nm			≥1000MHz·km	≥600MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wave Length		≤1260nm	≤1480nm

Technical Parameters
Model	Fiber Count	Cable ODmm	Cable Weight kg/km	Supporting Wire Spec	Connection Diameter	Tensile Strength Long Short Term	Crush Besistanre Long Short Term N/100mm	Bending Radius Static/Dynamic mm
1013	2~12	7.65×14.5	118	φ1.0mm*7 Stranded wires	Height x Width 3.0x2.5mm	1000/2500	300/1000	80/160
1014	14~24	8.2×15.1	129	φ1.0mm*7 Stranded wires	Height x Width 3.0x2.5mm	1000/2500	300/1000	90/180
