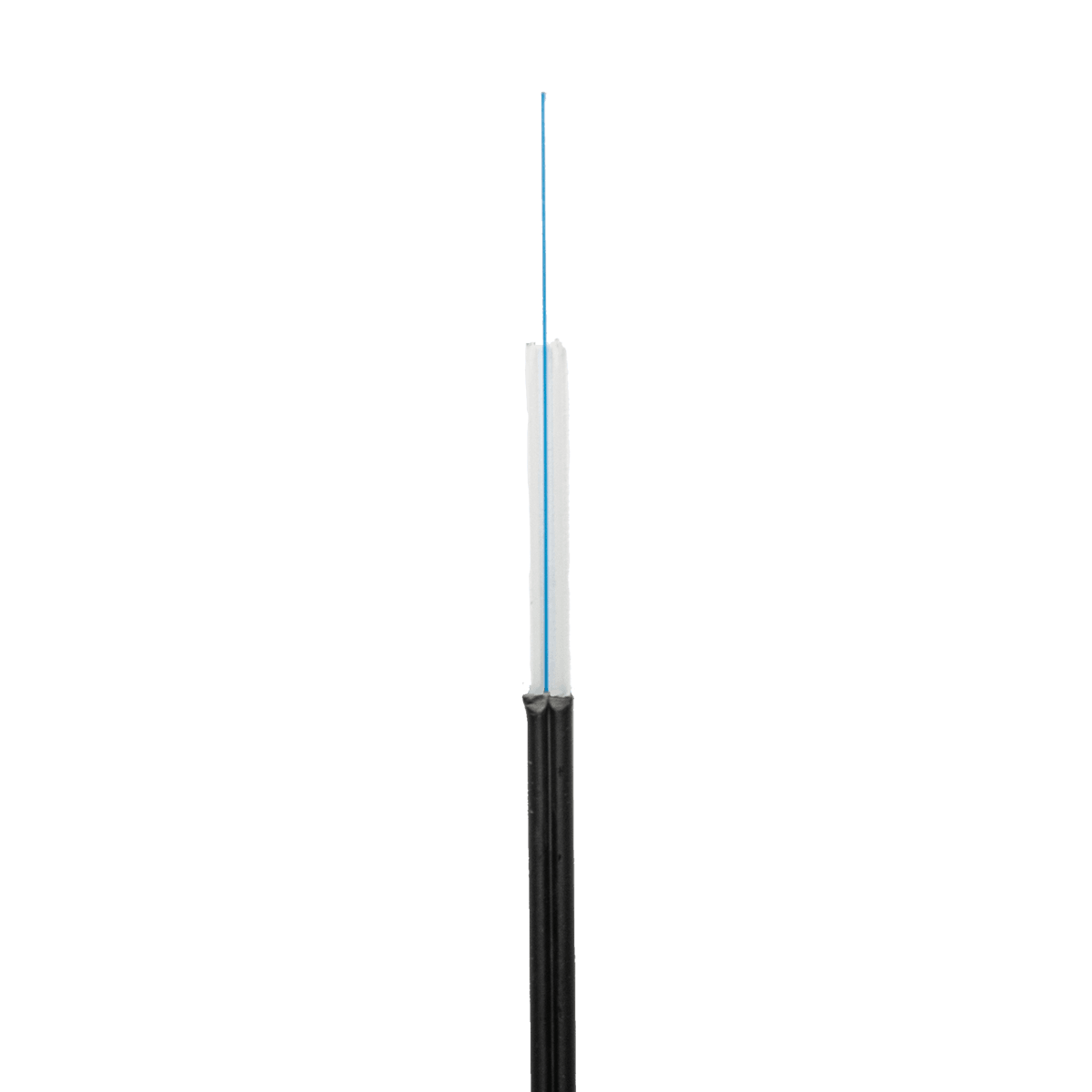

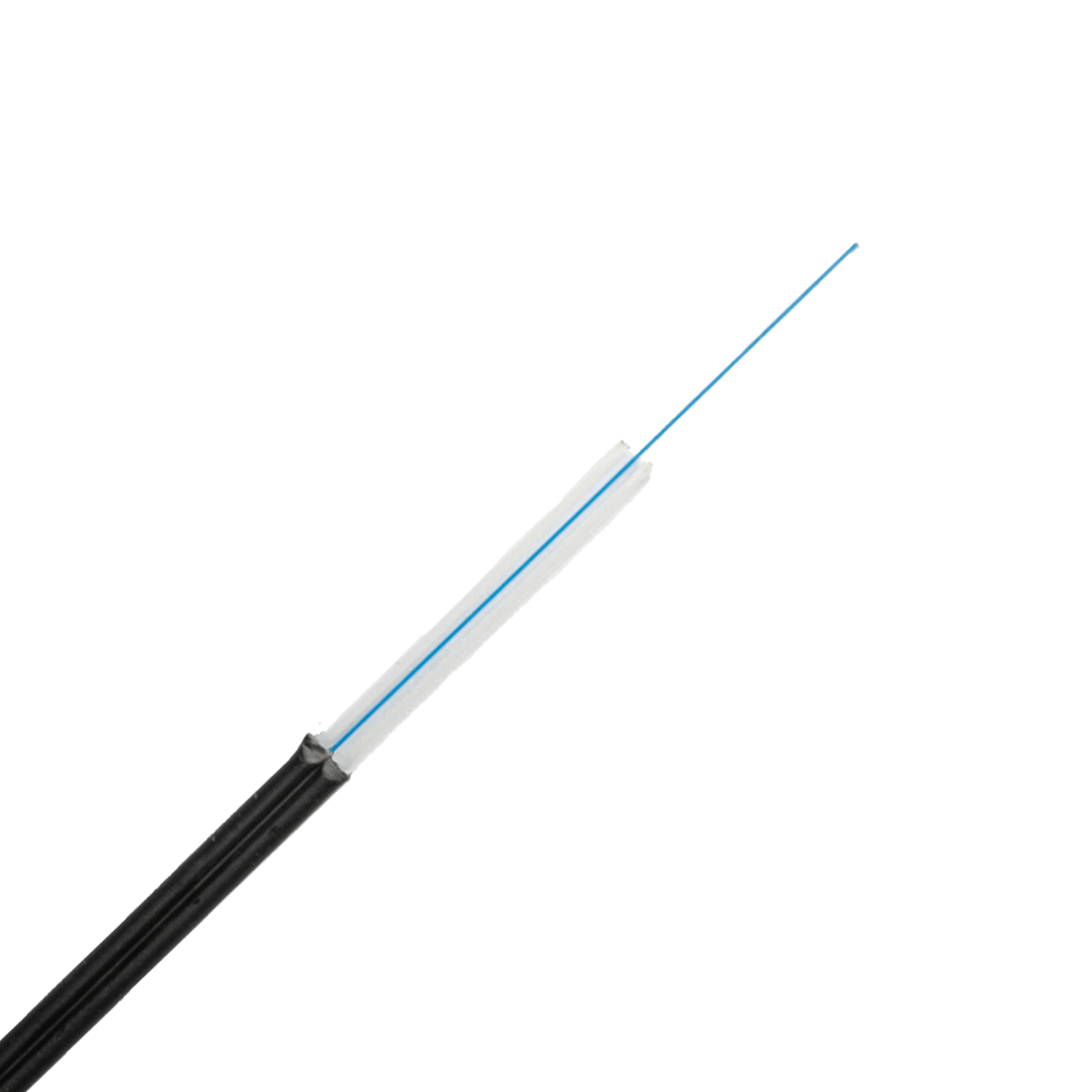

FTTH Indoor Cable

Characteristic:

◆Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

◆Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;

◆Simple structure, light weight and high practicability;

◆Novel flute design, easily strip and splice,simplifty the installation and maintenance

◆Low smoke, zero halogen and flame retardant sheath.

Description:

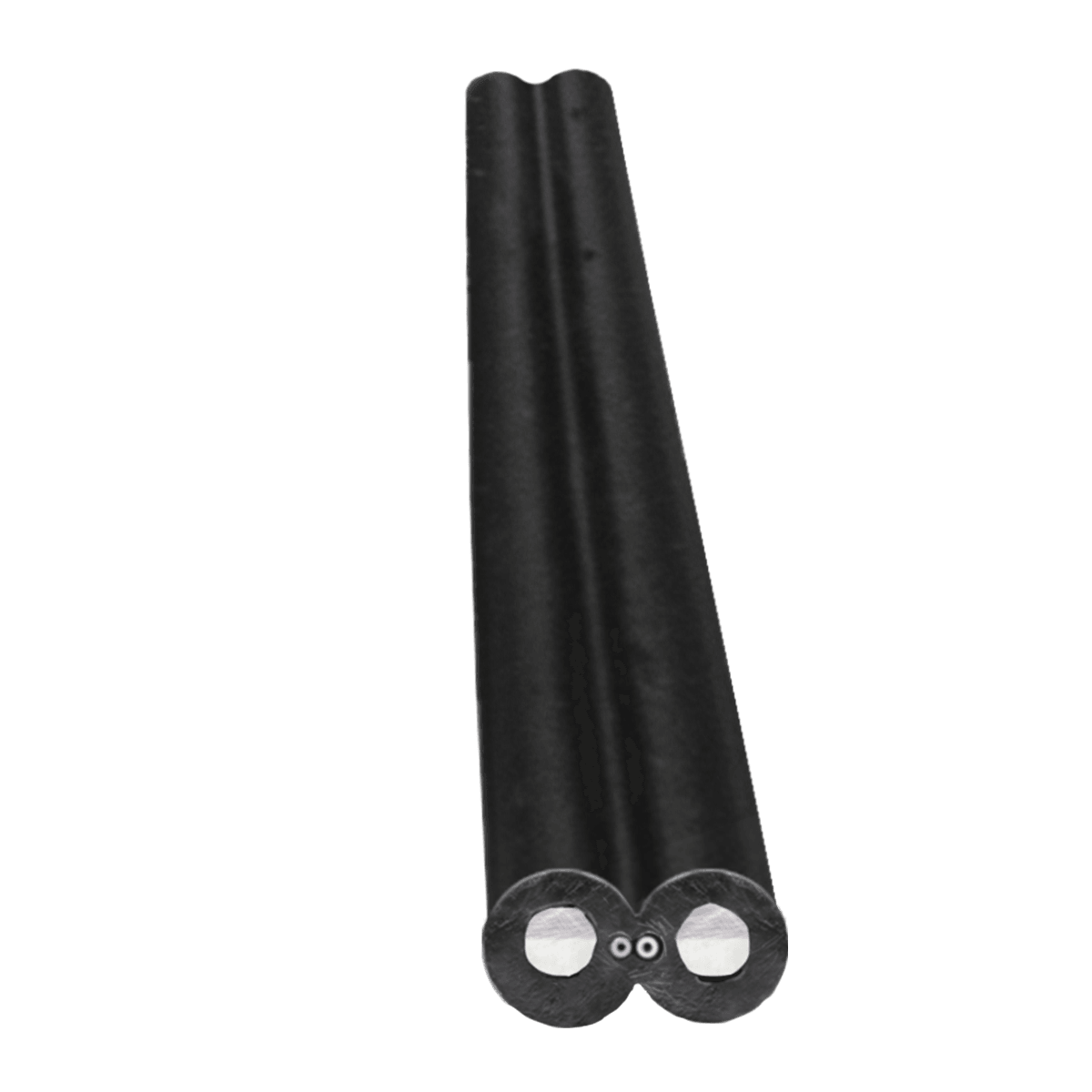

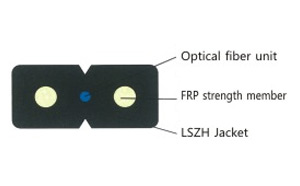

◆The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.

◆Then the cable is completed with a black or color LSZH sheath.

Technical Parameters
Fiber Count	Cable ODmm	Cable Weiah kg/km	Tensile Strength Long Short Term	Crush Besistanre Long Short Term N/100mm	Bending Radius Static/Dynamic mm
1	(2.0±0.2)x(3.0±0.2)	8	30/60	300/1000	10/30
2	(2.0±0.2)x(3.0±0.2)	30/60		300/1000	10/30
4	(2.0±0.2)x(3.5±0.2)	30/60		300/1000	10/30
6	(2.0±0.2)x(4.0±0.2)	30/60		300/1000	10/30
