Break-out Cable III

Characteristic:

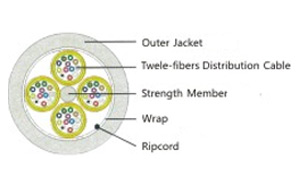

◆Elementtight buffer fiber, used six, twelve core distribution cable for the subunit into a compact, than used wrap winding. the cable is completed with outer jacket. The cable included four, six, eight, twelve subcables, the every subcable include six, twelve tight buffer fiber.

Geometrical Characteristics
Model	336	436	536	636	736	836
No.of fiber	24	48	64	72	96	144
Subunit Fiber Number	6	12	8	12	12	12
Cable Dimension(mm)	15.5	17	216	21	24	26.2
Cable Weight(kg/km)	225	226	386	349	481	526
TBF Diameter(μm)	900±50

Mechanical Characteristics
Tensile Strength(N)	Long Term	200
Tensile Strength(N)	Short Term	660
Crush Resistance (N/100mm)	Long Term	300
Crush Resistance (N/100mm)	Short Term	1000
Bending Radius(CM)	Dynamic	20xD(D:Cable Diameter)
Bending Radius(CM)	Static	10xD(D:Cable Diameter)

Fiber
Fiber Type(core/cladding dimension)	9/125,50/125,62.5/125

Transmission Characteristics
	SMF	50/125	62.5/125
	1310/1550(nm)	850/1300(nm)	850/1300(nm)
Attenuation(dh/km)	≤0.4/0.3	≤3.5/1.5	≤3.5/1.5
Minimum Bandwidth(MHz·km)		≥400/400	≥160/500
