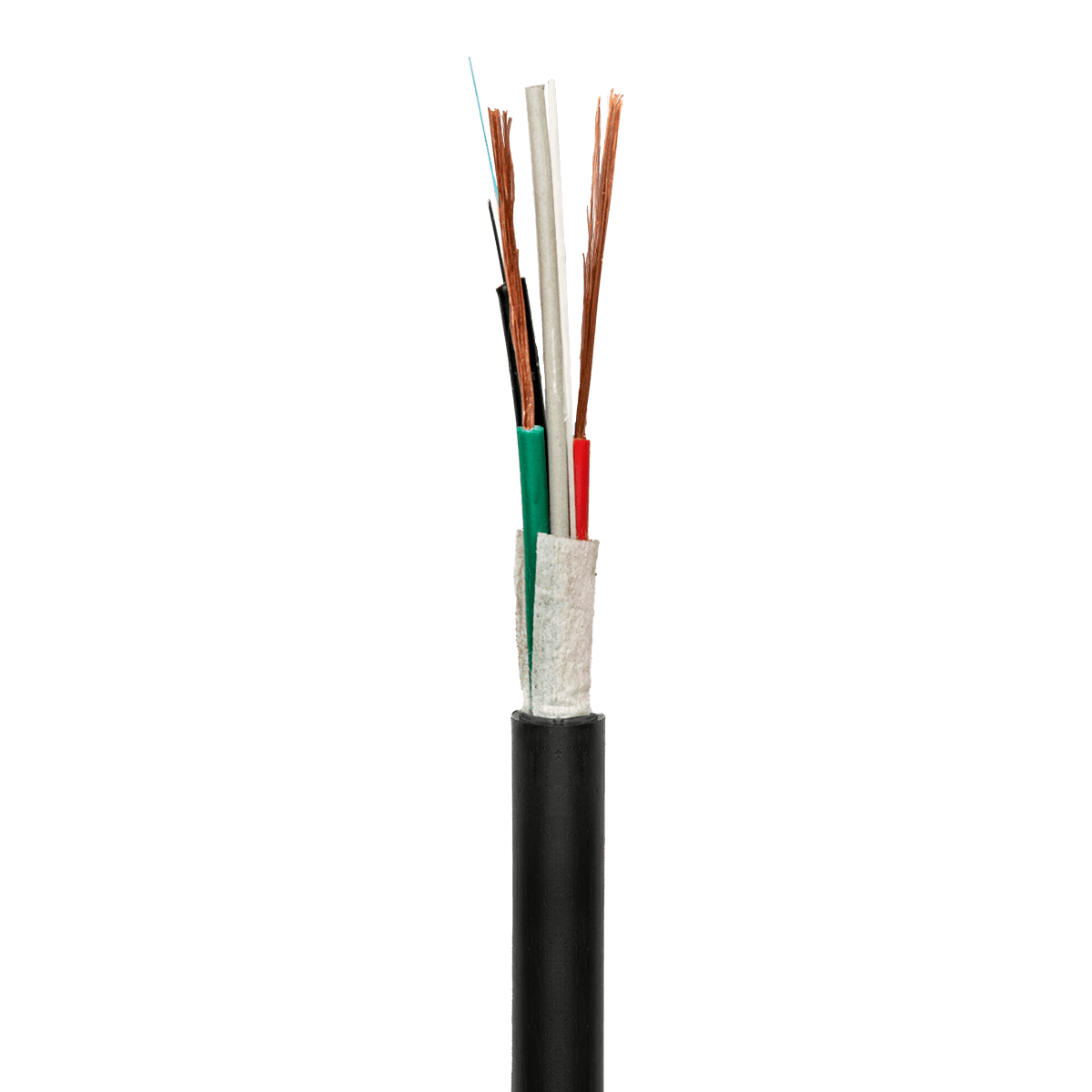

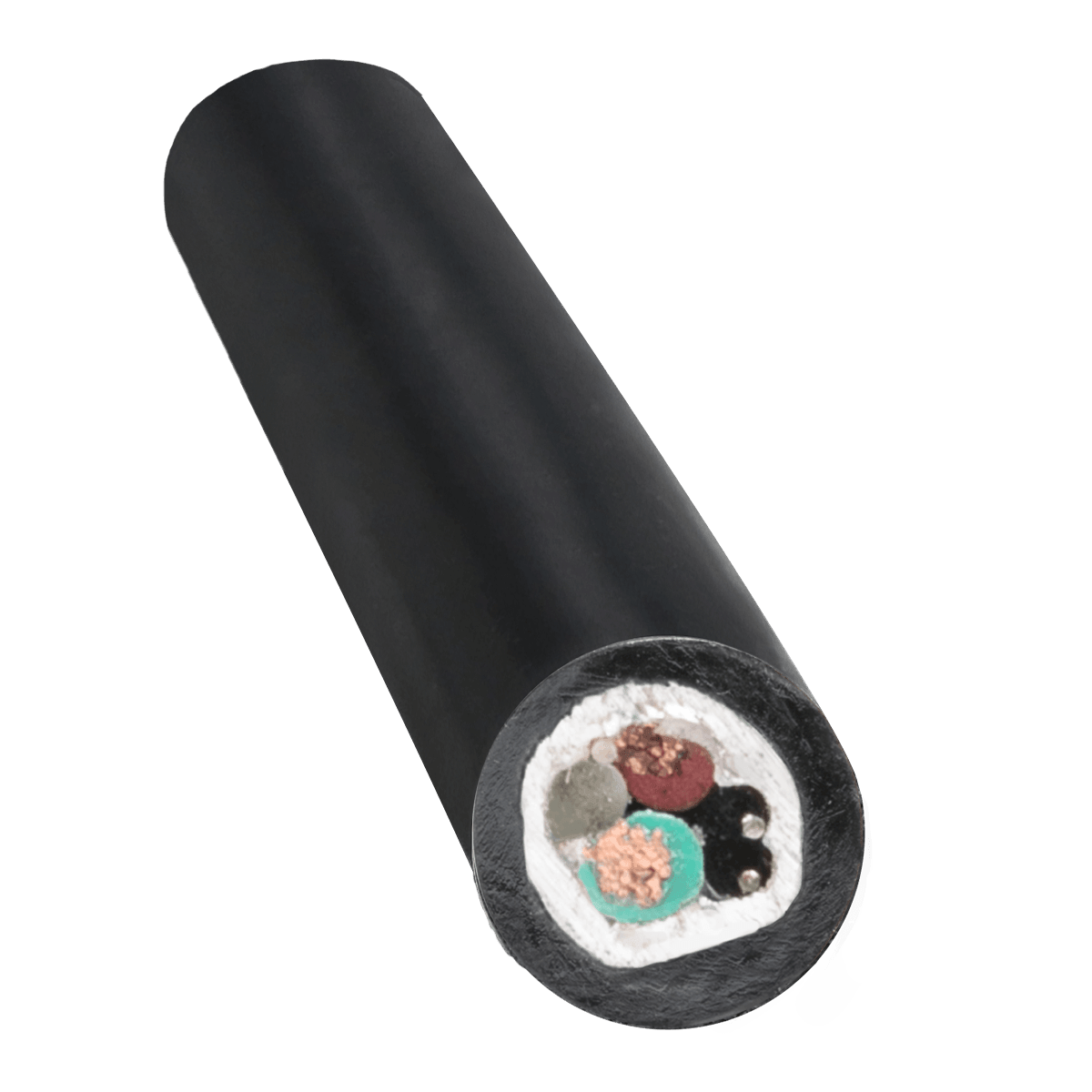

Optical/Lan Composite Cable

Lan Cable Specification:

◆Structure: 4P Twisted Pair (Optional)

◆Conductor: Solid or stranded bare copper (Optional)

◆Insulation: HD-PE

◆Jacket: PVC or LSZH

◆Rated Temperature: 75°C

◆Impedance: 100土15%Ω

◆Frequency: 100MHz

◆Reference Standard: YD/T1019- 2001, ISO/IEC 11801, ANSI/TIA/EIA-568B, UI444

◆Flame Retardancy Standard: CM, CMR

Application:

Optical/LAN composite cable is the combination of fiber optic cable and network cable it can transmit both audio and video signals.

Because of its compact structure and convenient usage, the Optical/LAN composite cable can meet the different needs of users.

Given that the Optical/LAN composite cable is variety and nonredundant, there are no uniform naming methods, we need costomize it as per the users' need.

Here is a list of some models for reference to various types of Optica/LAN composite cable, the specification diagram as follows.
