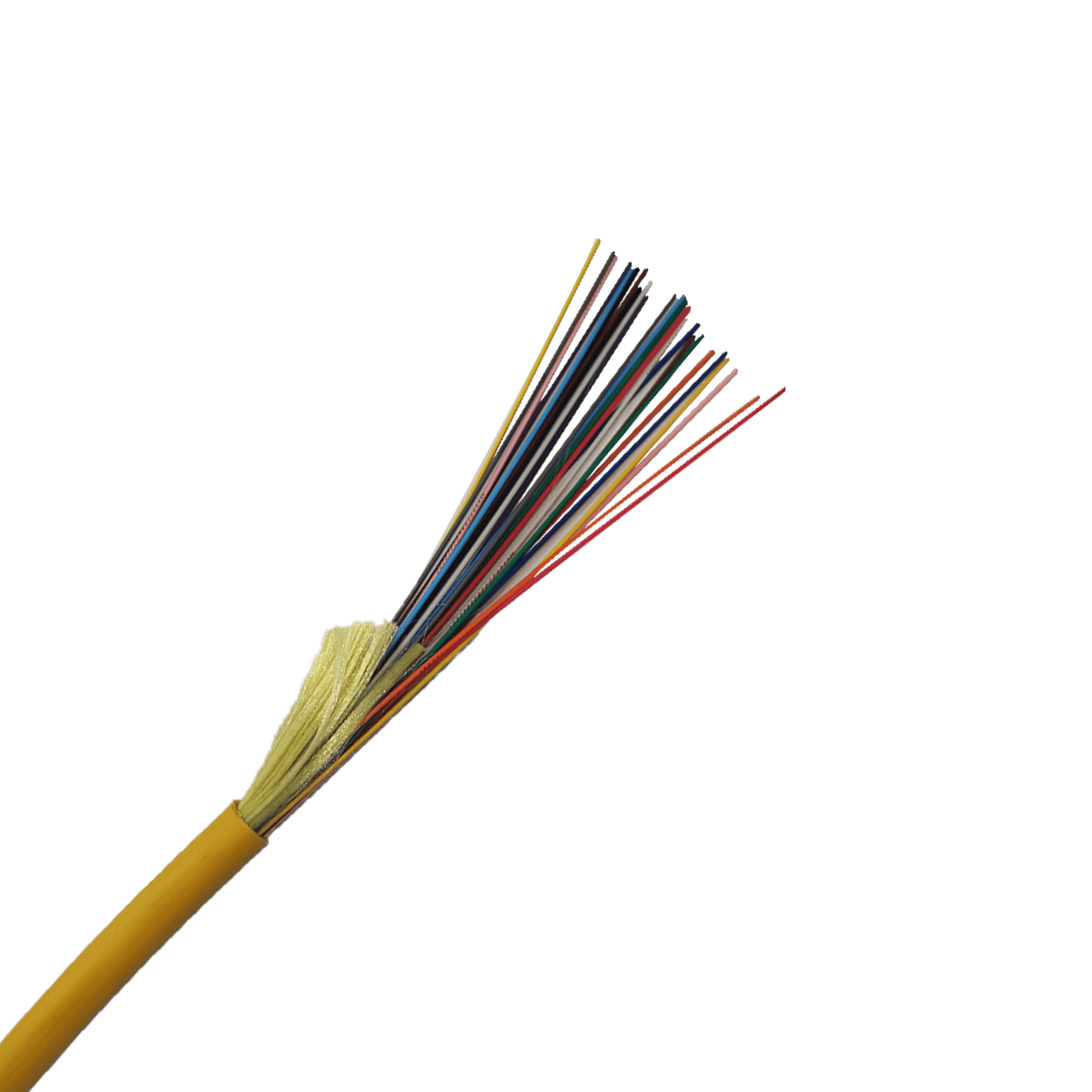

Distribution Cable

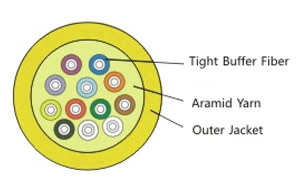

Geometrical Characteristics

Mode

333

433

533

633

733

833

No.of fiber

2

4

8

12

16

24

Cable Dimension(mm)

5.0±0.2

5.1±0.2

5.9±0.2

6.6±0.2

7.5±0.3

8.5±0.5

Cable Weight(kg/km)

19

21

28

34

46

57

TBF Diameter(μm)

900±50

Mechanical Characteristics

Tensile Strength (N)

Long Term

200

Short Term

660

Crush Resistance (N/100mm)

Long Term

300

Short Term

1000

Bending Radius (CM)

Dynamic

20xD(D:TBF Diameter)

Static

10xD(D:TBF Diameter)

Fiber

Fiber Type(core/cladding dimension)

9/125,50/125,62.5/125

Transmission Characteristics

SMF

50/125

62.5/125

1310/1550(nm)

850/1300(nm)

850/1300(nm)

Attenuation(dh/km)

≤0.4/0.3

≤3.5/1.5

≤3.5/1.5

Minimum  Bandwidth  (MHz·km)

≥400/400

≥160/500

Environmental Characteristics

Storage Operating Temperature

-20℃~+60℃
