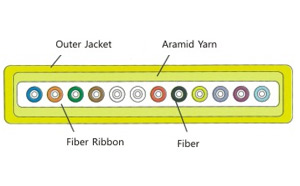

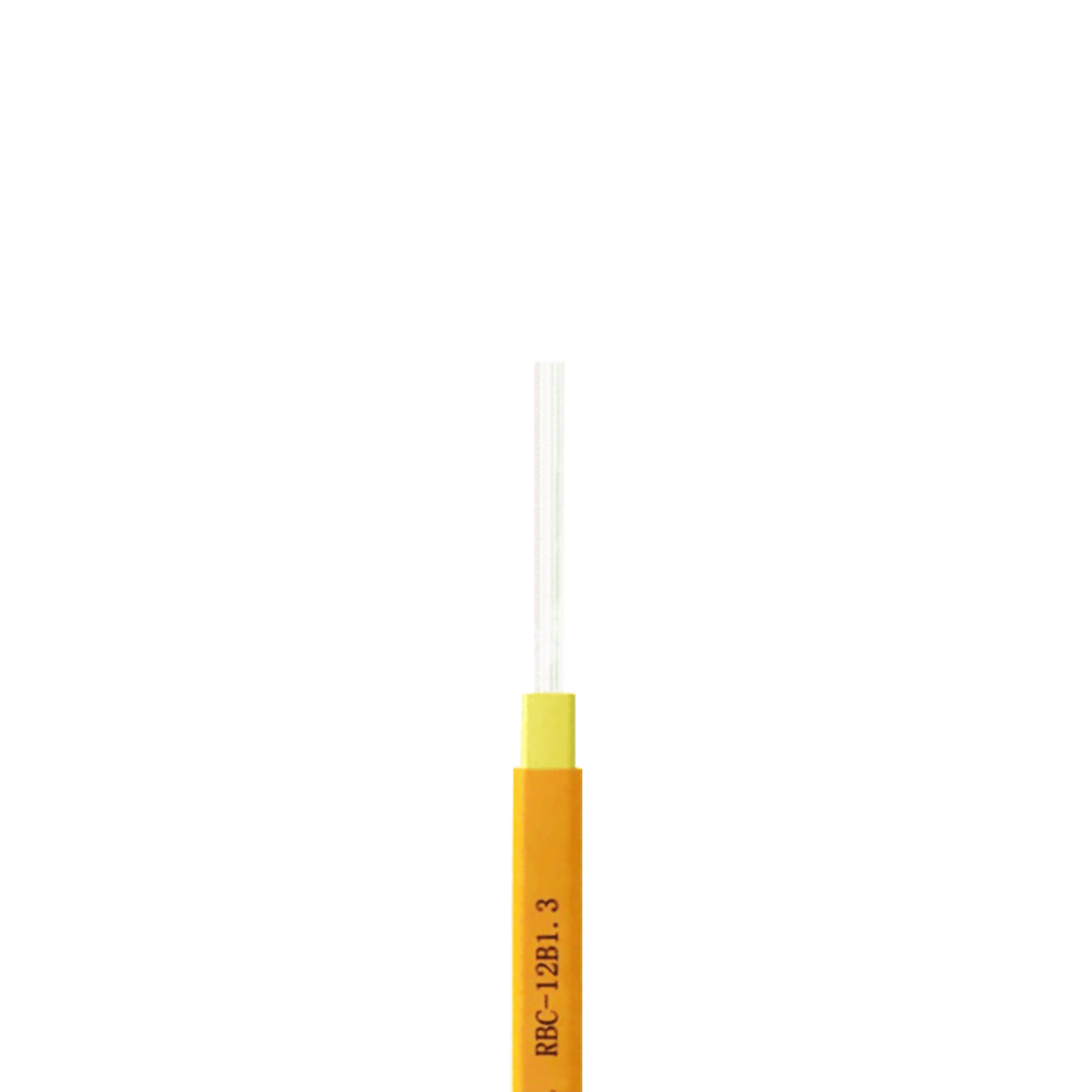

Flat Fiber Ribbon Cable

Geometrical Characteristics

Model

933

134

No.of fiber

4、6

8、12

Cable Dimension(mm)

(2.4±0.2)X(3.3±0.2)

(2.4±0.2)X(5.0±0.2)

Cable Weight(kg/km)

6.8

9.4

TBF Diameter(μm)

260±5

Mechanical Characteristics

Tensile Strength (N)

Long Term

60

Short Term

100

Crush Resistance (N/100mm)

Long Term

100

Short Term

500

Bending Radius (CM)

Dynamic

20xD(D:Cable Diameter)

Static

10xD(D:Cable Diameter)

Fiber

Fiber Type(core/cladding dimension)

9/125

Transmission Characteristics

SMF

1310/1550(nm)

Attenuation (db/km)

≤0.4/0.3

Minimum Bandwidth (MHz ·km)

Environmental Characteristics

Storage Operating Temperature

-20℃~+60℃
