FTTH Drop Cable

Characteristic:

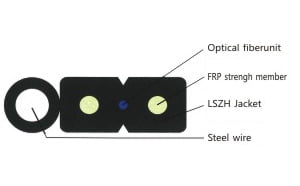

◆The optical fiber unit is positioned in the centre. Two Parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.

◆A steel wire as the additional strength member is also applied.

◆Then the cable is completed with a black or color LSZH sheath.

Description:

◆Special low- bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

◆Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;

◆Single steel wire or massagers as the additional strength member ensures good performance of tensile strength;

◆Simple structure, high weight and high practicability;

◆Novel flute design, easily strip and splice, simplify the installation and maintenance;

◆Low smoke, zero halogen and flame retardant sheath.

Technical Parameters
Fiber Count	Cable ODmm	Cable Weight kg/km	Tensile Strength Long Short Term	Crush Besistanre Long Short Term N/100mm	Bending Radius Static/Dynamic mm
1	(2.0±0.2)x(5.0±0.2)	20	60/120	300/1000	15/35
2	(2.0±0.2)x(5.0±0.2)	20	60/120	300/1000	15/35
4	(2.0±0.2)x(5.5±0.2)	21	60/120	300/1000	15/35
6	(2.0±0.2)x(6.0±0.2)	22	60/120	300/1000	15/35
